1T White Polyester Flat Endless Pipe Lifting Webbing Sling

1. Product Introduction

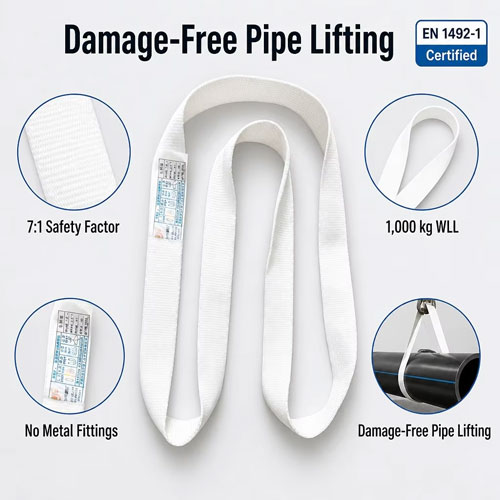

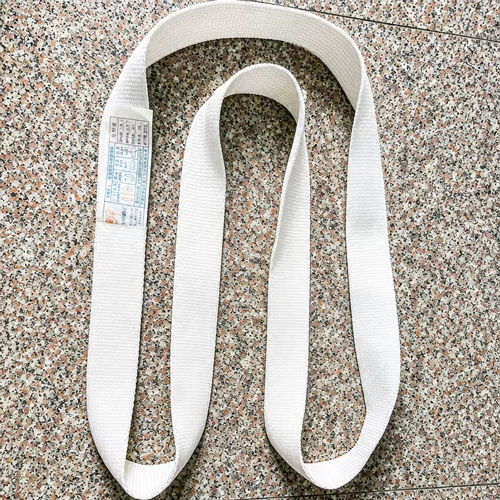

The 1T White Polyester Flat Endless Pipe Lifting Webbing Sling is a premium lifting tool engineered for safe, efficient and damage-free handling of pipes in construction, precast, pipeline and offshore applications. Manufactured from high-tenacity polyester (PES) webbing with a two-ply endless construction, this 1T White Polyester Flat Endless Pipe Lifting Webbing Sling delivers a 7:1 safety factor and fully complies with EN 1492-1, ASME B30.9 and OSHA 1910.184 requirements.

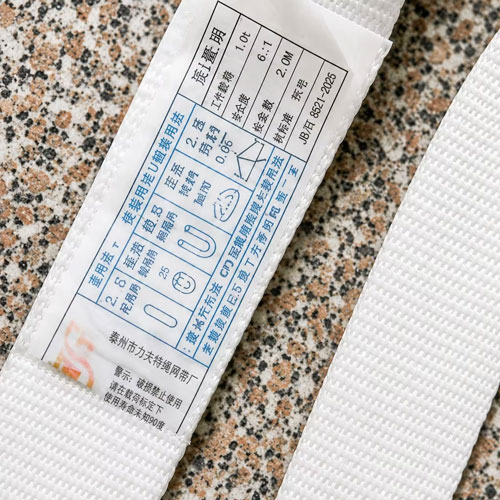

The 1T White Polyester Flat Endless Pipe Lifting Webbing Sling uses 100% high-tenacity polyester filament yarn, offering an excellent strength-to-weight ratio, superior abrasion resistance and long-term UV stability. The endless flat loop design eliminates all metal fittings, providing a soft, flexible and corrosion-free lifting solution. Every sling is individually proof-tested and tagged with its working load limit (WLL) and batch number for complete traceability.

2. Key Features & Benefits

• 100% Polyester High-Tenacity Webbing — The soft flat webbing protects anti-corrosion pipe coatings (FBE / 3PE) and finished pipe surfaces from scratches and impact damage during lifting.

• Endless Loop, No Metal Fittings — The endless design of the 1T White Polyester Flat Endless Pipe Lifting Webbing Sling allows straight, choke and basket hitches, adapting quickly to pipes of any diameter without additional hardware.

• 7:1 Safety Factor — Rated at a working load limit (WLL) of 1,000 kg with a minimum breaking force of 7,000 kg, giving operators a wide and reliable safety margin.

• White Natural Polyester — Undyed PES webbing is dimensionally stable, resistant to UV degradation and suitable for working temperatures from -40°C to +100°C.

• Customizable Size — Available in widths of 30 mm, 60 mm, 90 mm and 100 mm with custom loop lengths to match pipe diameters and rigging configurations.

3. Applications

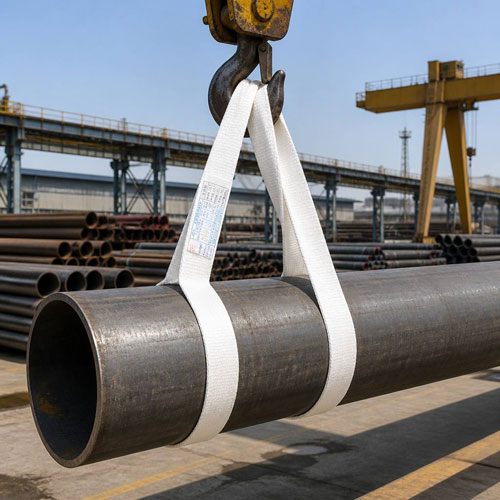

The 1T White Polyester Flat Endless Pipe Lifting Webbing Sling is widely used for steel pipe and pipeline lifting, precast concrete pipe handling, HDPE/PE pipe installation, ductile iron pipe loading and unloading, offshore and oil & gas pipe-laying operations, and general heavy round-object lifting.

4. Technical Specifications

Note: Custom width, length and capacity are available upon request.

5. Rigging Methods

• Straight Hitch — Full rated WLL; ideal for vertical lifting of single pipes.

• Choke Hitch — Reduces the rated capacity; recommended for gripping and controlling pipe position.

• Basket Hitch — Distributes load across two legs; suitable for balanced lifting of long pipes.

6. Quality & Certification

Every 1T White Polyester Flat Endless Pipe Lifting Webbing Sling is produced under strict quality control from weaving, sewing and proof-testing to final inspection. Each sling comes with a factory test certificate and an EC declaration of conformity, ensuring full traceability and compliance for international projects.

7. Safety Notes

• Never exceed the rated working load limit (WLL) of 1,000 kg.

• Inspect the sling before each use; discard if cut, frayed, heat-damaged or with exposed load-bearing yarns.

• Protect the webbing from sharp edges, weld spatter and chemical contact.

• Avoid twisting or knotting the sling during lifting operations.

• Store in a cool, dry place away from direct sunlight when not in use.
