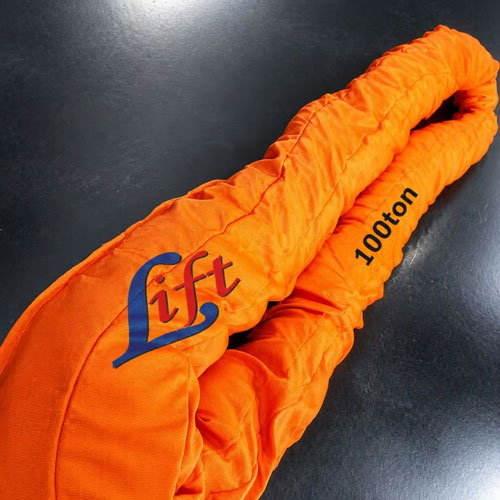

WLL 100T Polyester Round Slings

WLL 100T Polyester Round Slings - Heavy Duty Endless Round Slings, Soft Lifting Slings - [Lift Sling Net Belt Factory] - China Manufacturer, Supplier, Factory

Key Specifications

Product Description

The round slings are usually made up of polyester. The surface of round sling can prevent the object wear and tear or scratch, even it can lift the object that would be damaged. The round cover belt isn't bearing weight, but only protecting the inside parallelly-ranged silk-bunch. The outside round cover belt will break first or warn when overloading gravely or using for a long time, then the accident will be in case.

The safety coefficient is 7:1, according to your special needs, 5:1, 6:1, 8:1 for your choice. The working load is differentiated by colors according to international standard, easy to identify even if the sling has been abraded.

When ordering it is important to make clear whether the length specified is circumference or effective working length. Length and load capacity can be customized according to your drawings or requirements.

Technical Specifications

• Type: Polyester endless round sling (soft lifting sling)

• Colour coded according to EN 1492-2:2000+A1:2008 & AS 4497:2018

• Capacity stripes: each stripe is equal to 1 tonne capacity

• The safe working load is clearly and continuously printed on the sleeve

• PU-impregnated webbing of the sleeve, which does not allow dirt to enter

• Each sling is packed in plastic with CE declaration of conformity or Test Certificate

• Characteristics: low elongation (approx. 3% at rated capacity), extremely wear-resistant

• Norms: Machinery Directive 2006/42/EC & EN 1492-2:2000+A1:2008 & AS 4497:2018; Safety Factor 7:1 / 8:1

• Temperature range: -40°C to +90°C. Do not expose to strong alkalis at elevated temperatures

Working Load Limit (WLL) Table

Unit: tonne (t) — multipliers per EN 1492-2. (1 sling: straight / choked / basket 0-45° / basket 45-60°; 2 slings: straight ≤45° / choked ≤45° / straight 45-60° / choked 45-60°)

Full Range — Code / WLL / Length

Colour coded per EN 1492-2; capacity stripes: each stripe equals 1 tonne. Custom lengths and capacities available.

Product Features

• Hugging & Gripping: perfect for hugging and gripping many uneven and odd shaped loads, with no damage to the lifted object.

• Light Weight, High Strength: easy to handle and reduces headroom problems.

• Low Elongation: 100% polyester construction assures low elongation of approx. 3% at rated capacity and still returns to original length.

• Protective Jacket: protects internal load-bearing fibers from abrasion, wear, UV degradation, dirt and debris.

• Chemical Resistance: resists moisture absorption, rot and mildew; good resistance to common industrial acids, oils, solvents and seawater.

• Load Stability: load stability and balance can be achieved by spreading sling legs; wear points can be shifted to extend sling life.

Applications

• Steel / Aluminum Coil Handling

• Ingot & Billet Lifting

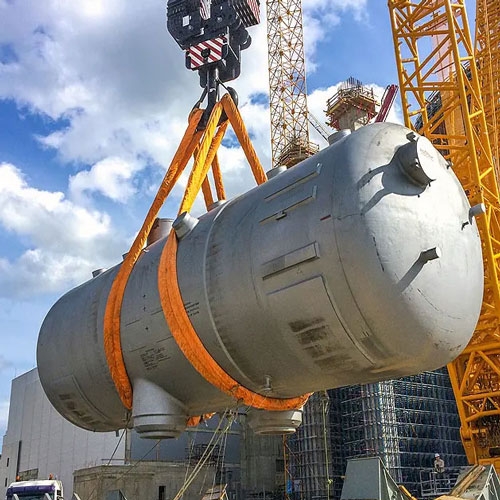

• Crane Heavy Lifting

• Marine & Offshore

• Construction & Precast

• Logistics & Port

Related Products

• WLL 10T / 20T / 50T / 200T Polyester Round Slings

• Eye & Eye Round Slings EN1492-2 (1-1000T)

• HMPE/UHMWPE Round Slings

• Fireproof Aramid Round Slings

• PU Coated Round Slings 1-1000T
